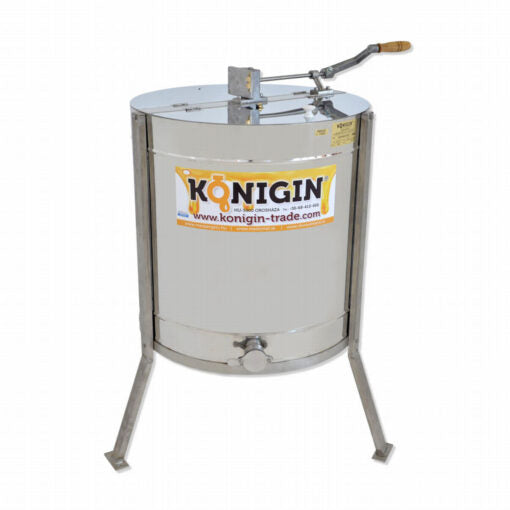

Konigan - 4 Frame Manual Honey Extractor - Tangential


Premium quality 4 frame European Honey Extractor from Konigan.   Everything about this honey extractor oozes quality.  You can also spin 2 ideal size frames per cradle meaning you can spin 8 ideal honey frames at a time.

Comes with solid legs and hand crank.  Perspex lid.

Full stainless steel body, honey gate and legs which extend to the top of the barrel helping with the stability whilst spinning your honey.  This extractor won't disappoint.

You need a custom quote for freight as they needs to be shipped on a pallet.  They weigh approx 25kg

Freight: freight will be incorrect if buying online directly.  You need to send an email with your suburb name and postcode for a custom shipping quote.

Other sizes are available - just enquire

Pickup available from Gembrook Victoria by arrangement (no freight)

Technical information

Frame height: until 250 mm
Number of frames: 4 deep or 8 ideals
Material of the rotating basket: stainless steel
Outer diameter of the honey extractor (cm): 50
Height of the honey tap at standard feet (1000 mm): 350 mm
Height of the mantle: 650 mm
Material thickness of the bottom: thickness 1,0
Kind of material and thickness of the lid: 1.4301 thickness 0,8
Kind of material and thickness of the mantle: 1.4301, thickness 0,7
Kind of material and thickness of the hinge: 1.4301, thickness 1,0
Drive: manually
Power: 0
Braking mode: manually counter brake
Material of the honey tap: stainless steel
Machine controlling:
Guarantee 2 years
Weight: 25 kg
